360kW-480kW split-type DC EV charger
Dedicated for best quality innovations
360kW-480kW split-type DC EV charger

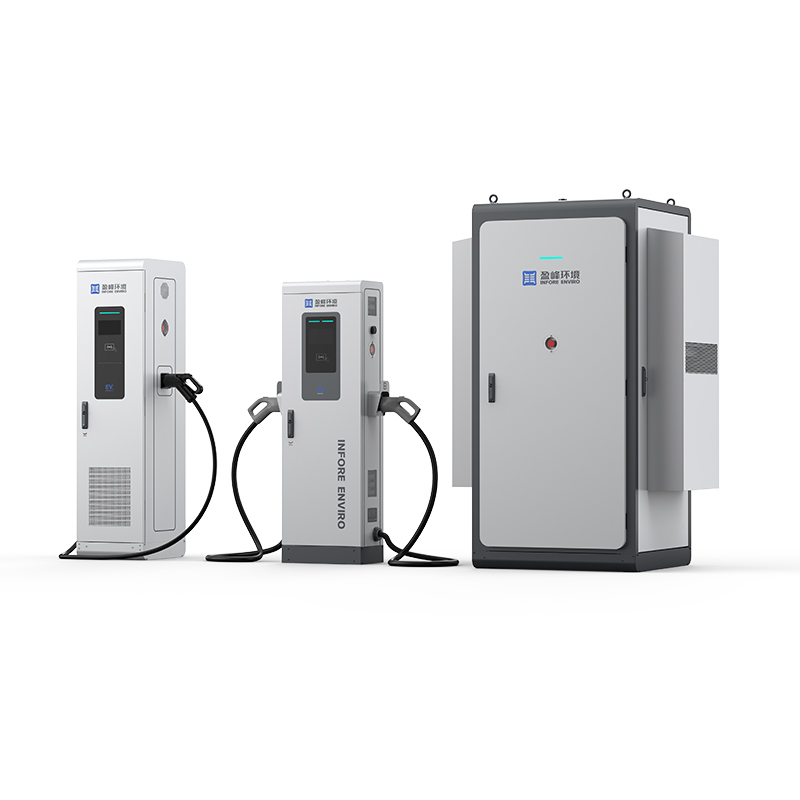

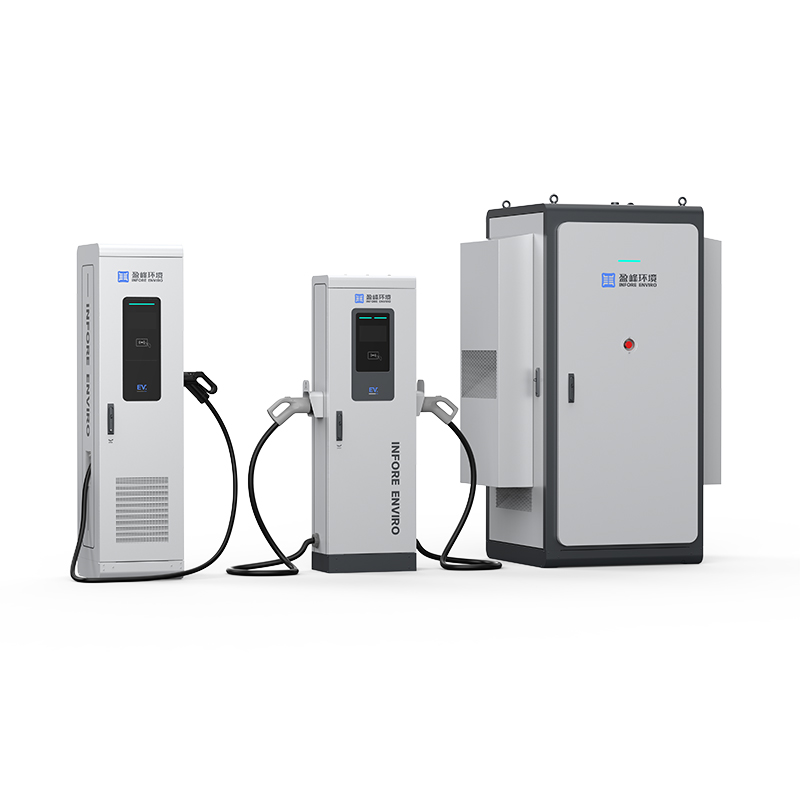

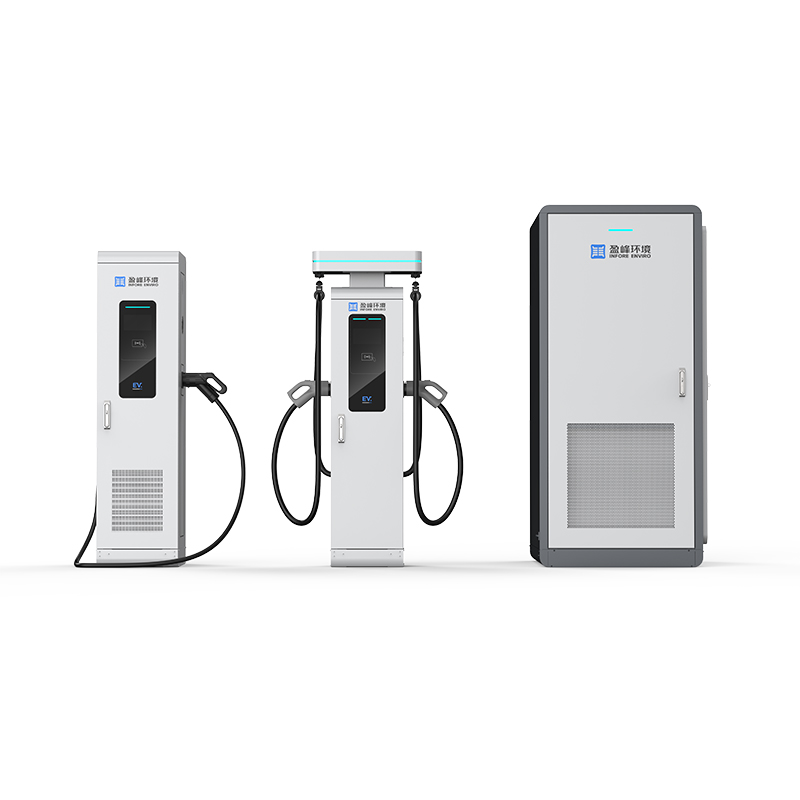

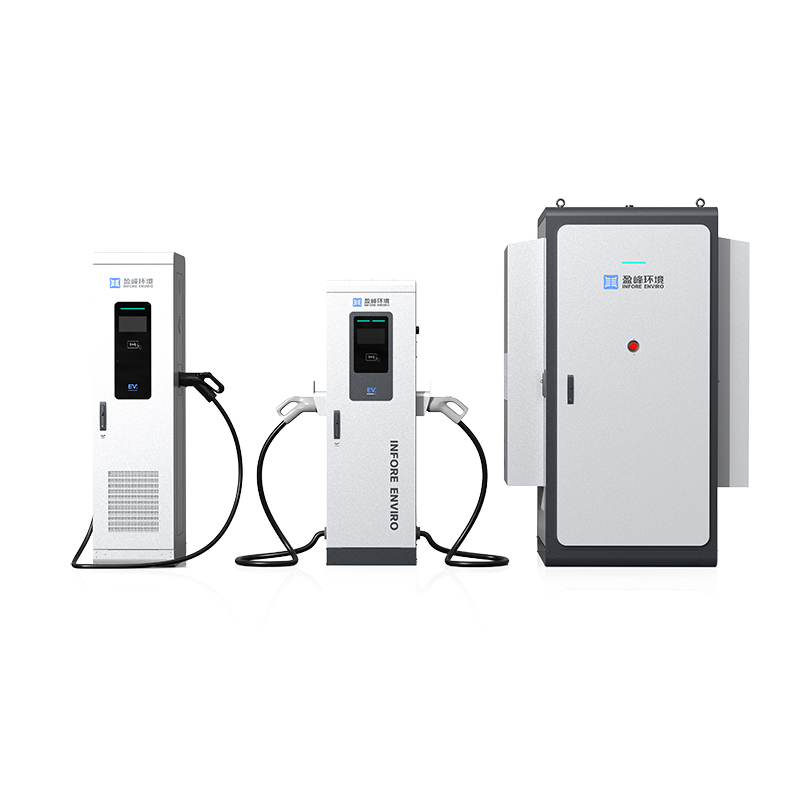

DC EV split charger kit with the rectifier cabinet charging terminal
Highlights :
- 360kW-480kW
- Input voltage:AC380V±15%
- 2 Guns GBT
- IP55
- 4G/Ethernet
Description
| 360kW-480kW Split charging station | ||||||
| | Modular design | High current fast charge | Strong compatibility | Security and stability | Remote maintenance | | ||||||
| Basic Parameter | ||||||
| Model | YTD-G-360 | | | YTD-G-400 | | | YTD-G-480 | |
| Rated power | 360kW | 400kW | 480kW | |||
| Input Parameter | ||||||
| Input voltage | AC380V±15% | |||||
| Input current | ≤582A | ≤646A | ≤775A | |||||
| Input frequency | 50Hz±5Hz | |||||
| Output Parameter | ||||||
| Output voltage | DC200-1000V | |||||
| Constant power output voltage | DC300-1000V | |||||
| Max output current | 1200A | | | 1333A | | | 1600A | |
| Number of circuits | 2-6 | 2-8 | 2-10 | |||
| Characteristic Parameter | ||||||
| Peak efficiency | ≥95% | |||||
| Power factor | ≥99% | |||||
| Networking | 4G/Ethernet | |||||
| Ingress protection | IP55 | |||||
| Protection | Charging connector temperature detection,protection against overvol- | |||||
| tage/undervoltage,overload,short circuit,overtemperature,current | ||||||
| leakage and lightning | ||||||
| Installation mode | Floor-mounted | |||||
| Cooling mode | Forced air cooling | |||||
| Operating temperature | -30℃~+50℃（+50℃~+70℃ Power derating） | |||||
| Storage temperature | -40℃~+70℃ | |||||
| Relative humidity | 5%～95% （No condensation） | |||||
| Altitude | ≤2000m | |||||
| Dimension（W*D*H） | 900mm*950mm*2000mm | |||||
| Weight | ≤550kg | ≤570kg | ≤600kg | |||||
| Terminal Features | ||||||
| Types | Single-connector |Double-connector|Double-connector| Single-connector | |||||
| fast charging fast charging air-cooled fast charging | ||||||
| terminal terminal terminal terminal | ||||||
| Model YTS-G-300Z-1 | YTS-G-300Z-2 | YTS-G-400Z-2 | YTS-G-600C-1 | ||||||
| BMS auxiliary power supply DC12V,DC24V(optional) | ||||||
| Interactive LED indicator,7″ LCD HD touch screen | ||||||
| Start mode APP,card,VIN | ||||||
| Charging port (GB/T)One | (GB/T)Two | (GB/T)Two | (GB/T)One | ||||||
| Cable length 5m (optional) | ||||||
| Cable retractor Available (optional) | Not available | ||||||
| Maximum output current 300A | 600A | 800A | 600A | ||||||
| Dimensions (W*D*H) 400*300*1750（mm） |450*500*1750（mm） | ||||||
| Weight ≤85kg | ≤100kg | ≤120kg | ≤150kg | ||||||
