480kW Split DC EV Charger
Dedicated for best quality innovations
480kW Split DC EV Charger

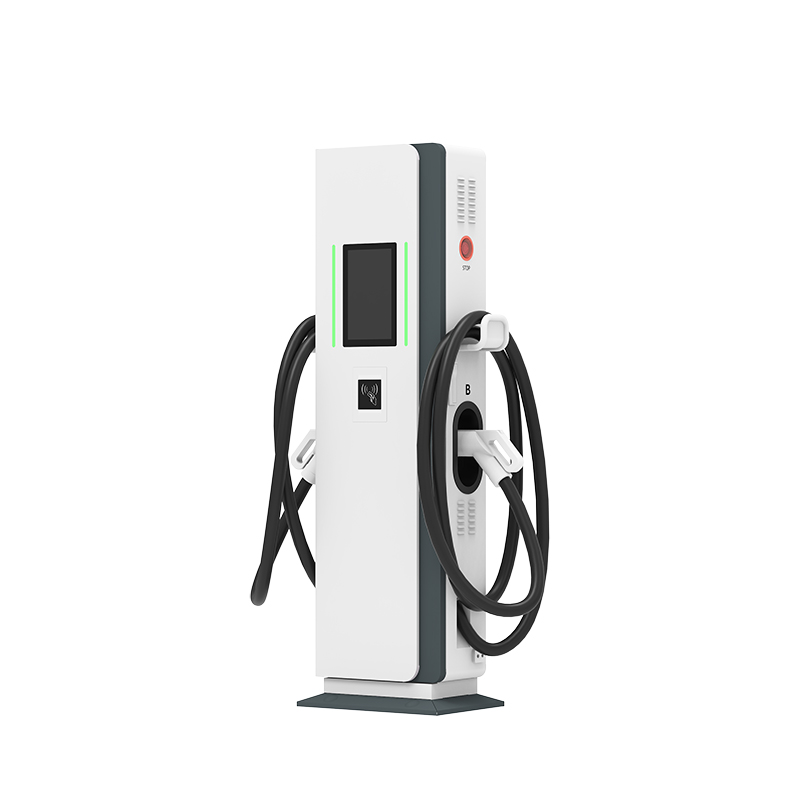

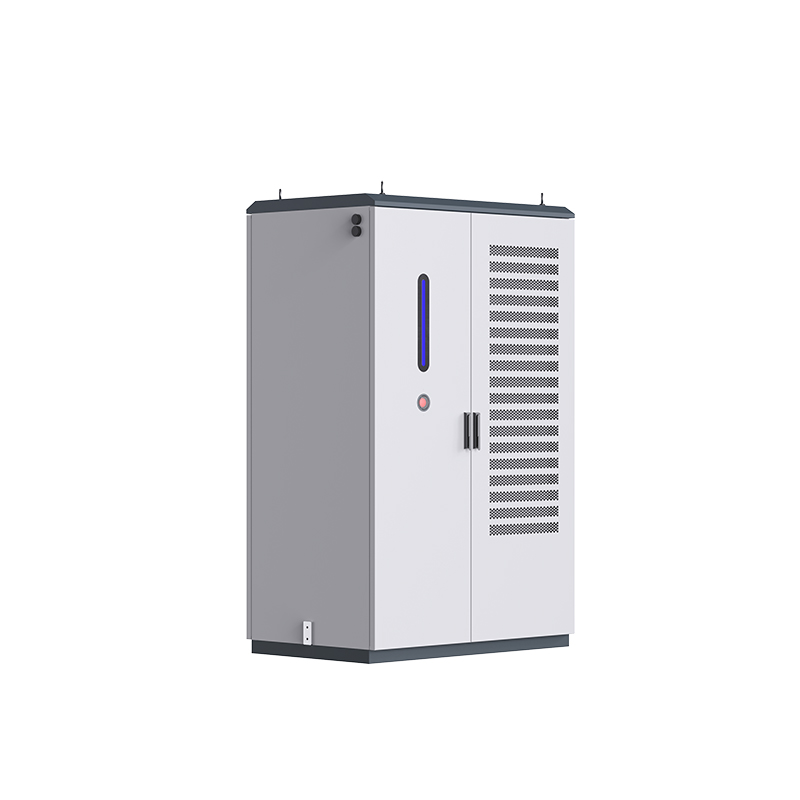

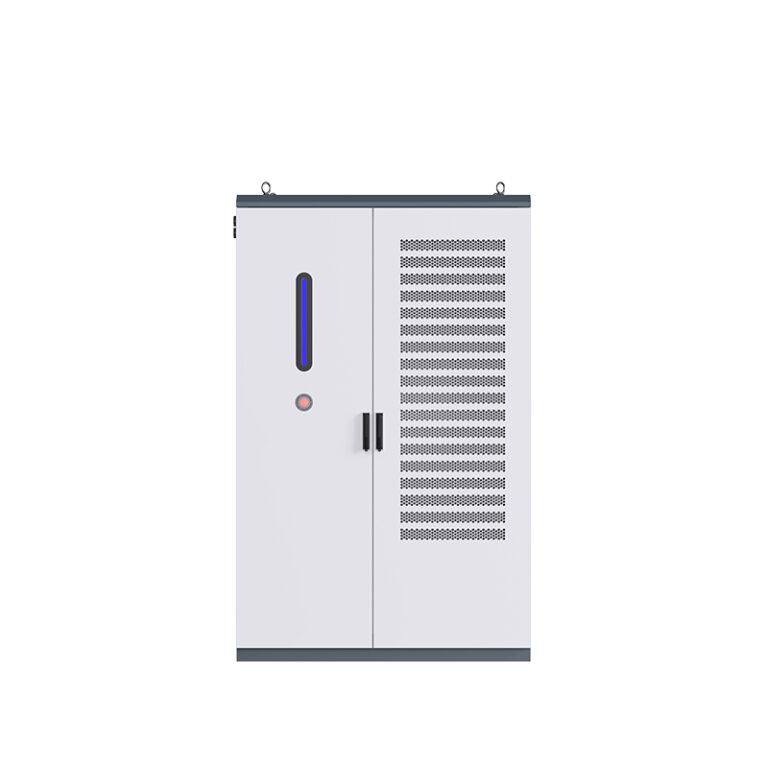

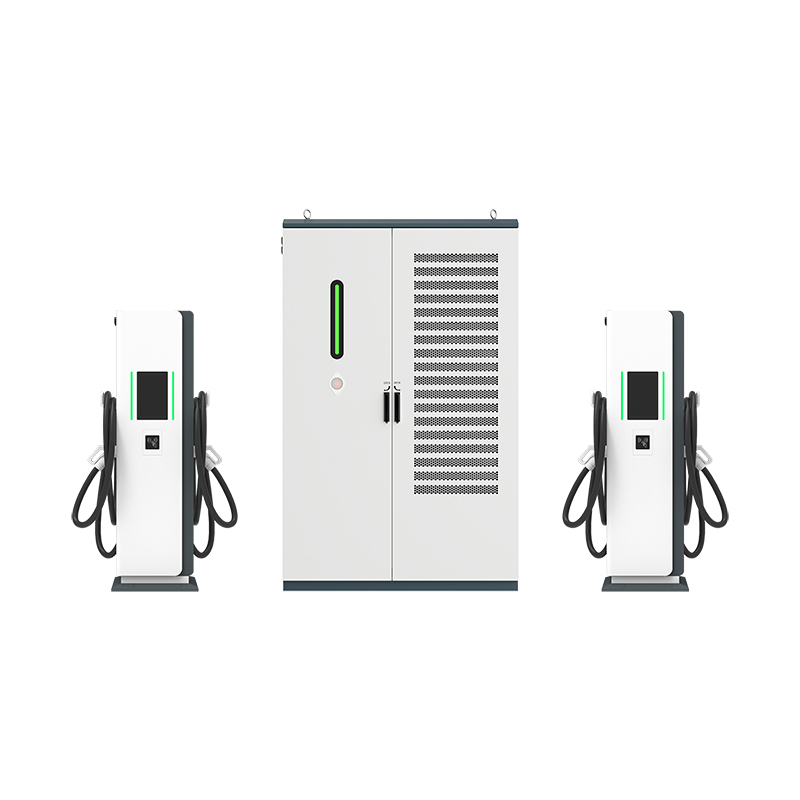

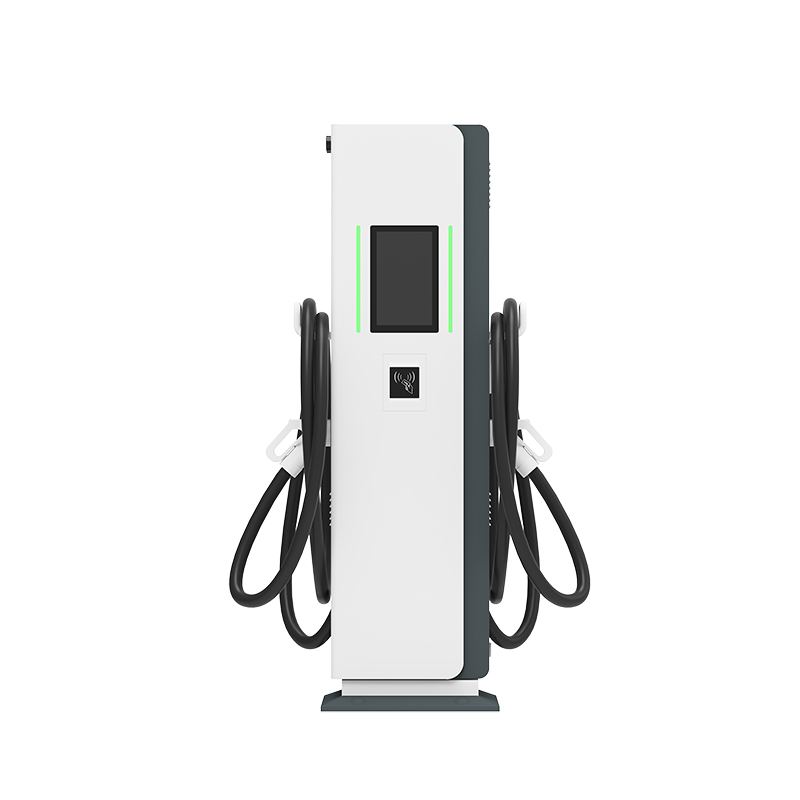

DC EV split charger kit with the rectifier cabinet charging terminal
Highlights :
- 480kW
- Output Current:250A max./connector
- 4 Guns CCS2
- IP54
- Ethernte,3G/4G,WiFi
Description
| 480kW Split charging station | ||
| Main Features | ||
| > High efficiency, reliable and stable performance > Supports OCPP 1.6J | ||
| > Supports Ethernet, 4G, WiFi (optional) > CCS2+CCS2 plug with 5M cable > 12.1-inch touchscreen display > Charging standard IEC 61851 > Metal shell | ||
| > Android operating system | ||
| Advanced Features | ||
| > Customizable logo and appearance > Support OCPP 2.0.1 protocol upgrade | ||
| > Can support switching between multiple languages > Can be customized with POS machine | ||
| Main Specifications | ||
| Electrical specifications | ||
| Power Station Rated Input | 380Vac±15%, 50/60Hz, L1+L2+L3+N+PE | |
| Rated Input current | 776A | |
| Output Interface | CCS2 | |
| Output Power | 480kW max. | |
| Output Current | 250A max./connector | |
| Connection between Power Station and Terminal | DC cable, single-phase AC cable, CAN communication cable | |
| Output Voltage | 200-1000Vdc | |
| Power Factor | ≥0.99 (50% load above) | |
| Efficiency | 95% @Nominal Output Power | |
| Human-Machine Interface | ||
| Display | 12.1-inch touch screen | |
| Operating System | Android | |
| Language | English (customizable and switchable language) | |
| Emergency Stop Button | Support | |
| User Authentication | RFID Card, APP, Password, Credit Card (Optional) | |
| RFID Reader | ISO/IEC 14443-A, Mifare one(M1) | |
| POS | PAX IM30 (Optional) | |
| Communication | ||
| Network Interface | Ethernet, 3G/4G, WiFi | |
| EVSE & Backend protocol | OCPP 1.6J/OCPP 2.0.1(Optional) | |
| EVSE&EV Protocol | DIN 70121, ISO 15118 | |
| Machine parameters | ||
| Number of Outputs | 4 | |
| Charging cable length | 5m | |
| IP Rating | IP54 | |
| Cooling | Forced Air Cooling | |
| Case material | Galvanized Steel | |
| Dimensions (HxWxD) | Power Station : 1985mm*1250mm*815mm Charging terminal:1700mm*460mm*265mm | |
| Installation | Ground Mounting | |
| Safety Protection | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | |
| Environmental Parameters | ||
| Operating Temperature | -25℃ to 55℃ | |
| Storage Temperature | -40℃ to 70℃ | |
| Humidity | 5% to 95% Without Condensation | |
| Operating Altitude | ≤2000m | |
| Standards | ||
| Standards and compliance | EN IEC 61851-1, EN 61851-23, EN 61851-24, EN IEC 61851-21-2,EN IEC 61000-6 | |
