6kW Commercial ev charger OCPP 1.6J Japan stander
Dedicated for best quality innovations
6kW Commercial ev charger OCPP 1.6J Japan stander

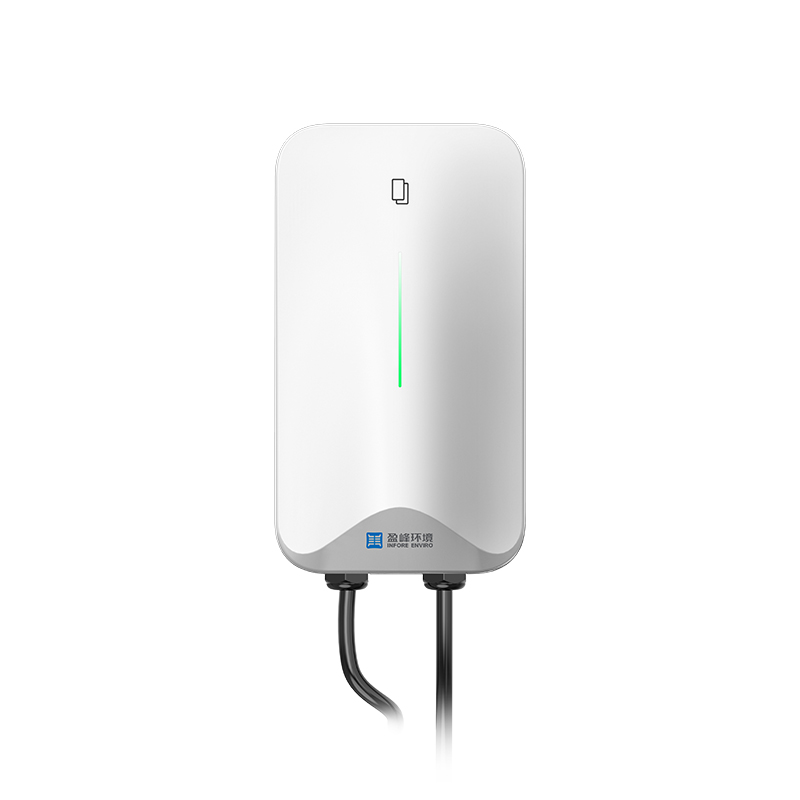

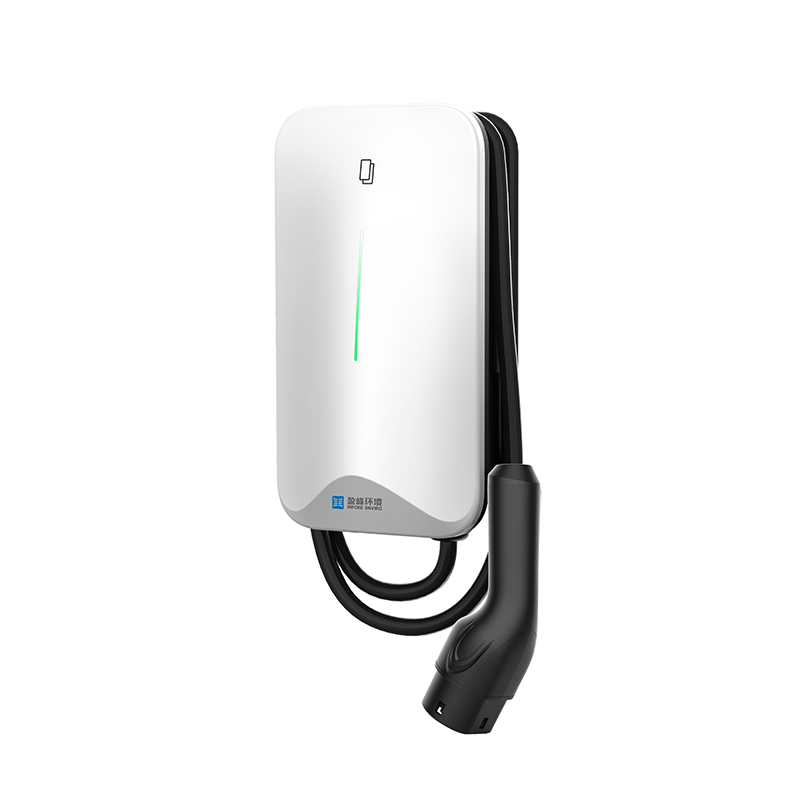

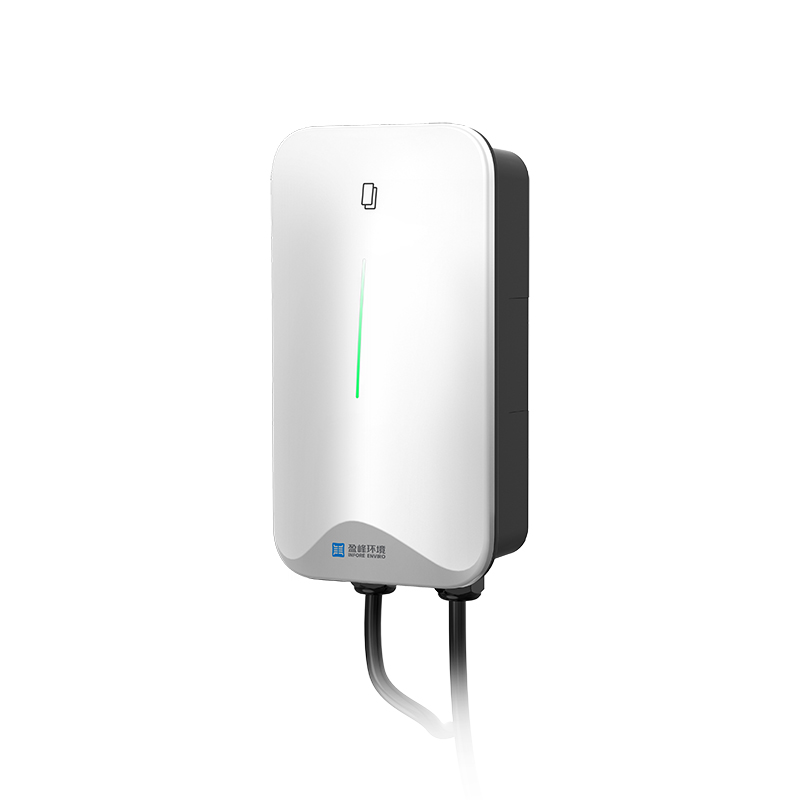

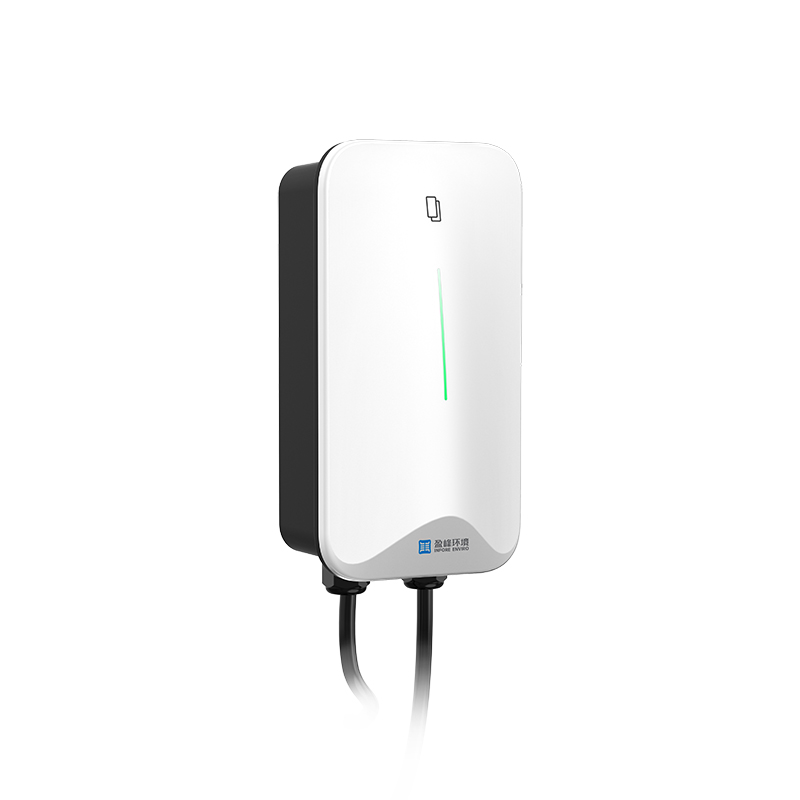

INFORE ENVIRO Smart EV Charger Type 1 with Cable IP65 Electric Vehicle Charging Station EV Wallbox 6kW OCPP 1.6J
Highlights :
- 1-Phase:6kW
- Communication :OCPP 1.6J
- Full Protection
- Dynamic Load Balancing (optional)
- Customize All Types of Connectors
- Smart Version with APP (optional)
- 3 Years Warranty
Description
| Vela series AC Wallbox Type 1 | |
| Electrical Properties | |
| Charging mode | Mode 3 |
| Input | Rated 200VAC，singal phase，50/60Hz，30A |
| Output | Rated 30A，6kW |
| Standby power consumption | ＜5W |
| Connector type | SAE J1772 |
| Cable length | 5m、7.5m |
| Communication | |
| Communication | OCPP 1.6J |
| Connectivity | Ethernet/WiFi/4G/Bluetooth |
| Interaction | |
| Startup mode | Plug&Charge / RFID card / App |
| Status indicator | LED(Green/Red/Blue) |
| Safety | |
| Enclosure rating | IP65 |
| Compressive strength | IK10 |
| Electrical protection | Over temperature, overcurrent, over/under voltage, leakage, surge, grounding, shortcircuit,lightning protection, CP fault protection |
| Residual operating current | Type A+DC 6mA |
| Safety standard | EN.IEC 61851-1:2010 |
| Certification | TELEC/PSE/JATE |
| Environment parameters | |

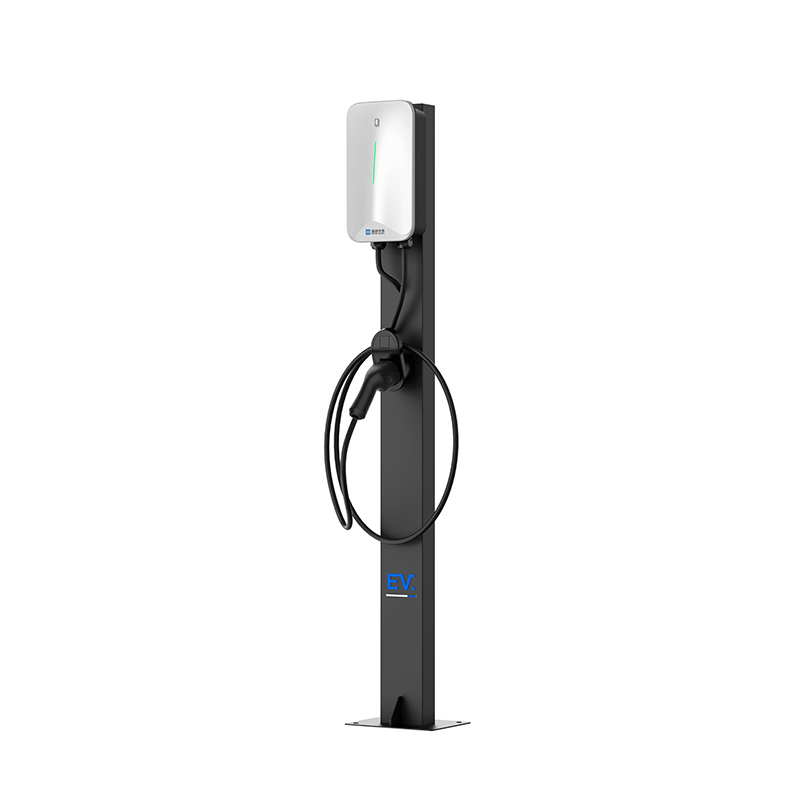

| Mounting | Wall/Pole |
| Operating temperature | -25°C~+50°C |
| Storage temperature | -30°C~+70°C |
| Operating humidity | 5%~95% |
| Operating altitude | ≤2000m |
| Physical properties | |
| Housing | PC |
| Net weight | 3.6KG |
| Gross weight | 4.9KG |
| Product demension | W187mm*D130mm*H336mm |
| Package demension | W525mm*D390mm*H170mm |
| Color | Pearl White/Starry Black/Glacier Gray |
| Package | Carton |
Description
Specification
Packing
Description
| Vela series AC Wallbox Type 1 | |
| Electrical Properties | |
| Charging mode | Mode 3 |
| Input | Rated 200VAC，singal phase，50/60Hz，30A |
| Output | Rated 30A，6kW |
| Standby power consumption | ＜5W |
| Connector type | SAE J1772 |
| Cable length | 5m、7.5m |
| Communication | |
| Communication | OCPP 1.6J |
| Connectivity | Ethernet/WiFi/4G/Bluetooth |
| Interaction | |
| Startup mode | Plug&Charge / RFID card / App |
| Status indicator | LED(Green/Red/Blue) |
| Safety | |
| Enclosure rating | IP65 |
| Compressive strength | IK10 |
| Electrical protection | Over temperature, overcurrent, over/under voltage, leakage, surge, grounding, shortcircuit,lightning protection, CP fault protection |
| Residual operating current | Type A+DC 6mA |
| Safety standard | EN.IEC 61851-1:2010 |
| Certification | TELEC/PSE/JATE |
| Environment parameters | |
| Mounting | Wall/Pole |
| Operating temperature | -25°C~+50°C |
| Storage temperature | -30°C~+70°C |
| Operating humidity | 5%~95% |
| Operating altitude | ≤2000m |
| Physical properties | |
| Housing | PC |
| Net weight | 3.6KG |
| Gross weight | 4.9KG |
| Product demension | W187mm*D130mm*H336mm |
| Package demension | W525mm*D390mm*H170mm |
| Color | Pearl White/Starry Black/Glacier Gray |
| Package | Carton |
