7kW/11kW/22kW AC EV CHARGER OCPP
Dedicated for best quality innovations
7kW/11kW/22kW AC EV CHARGER OCPP

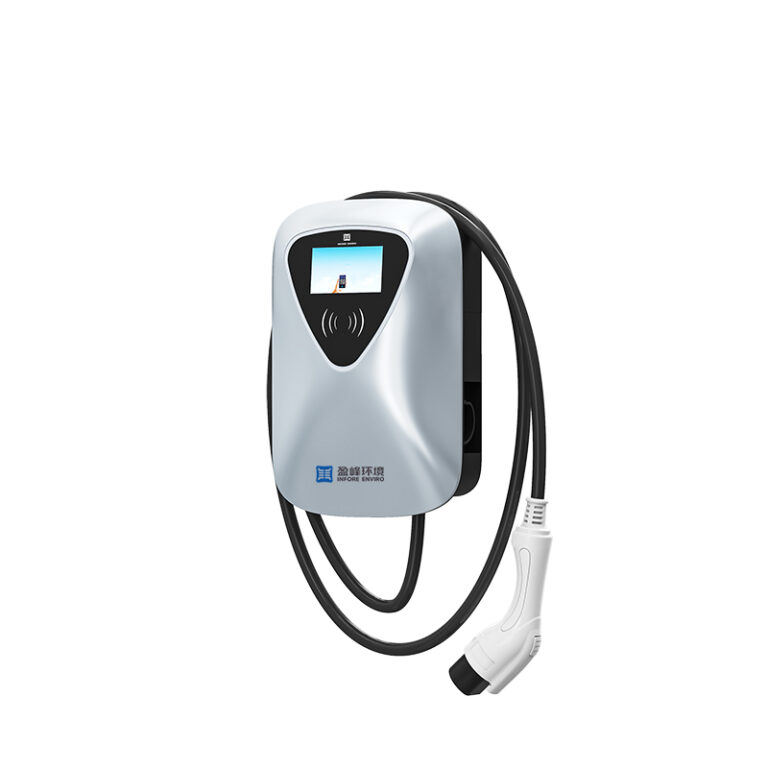

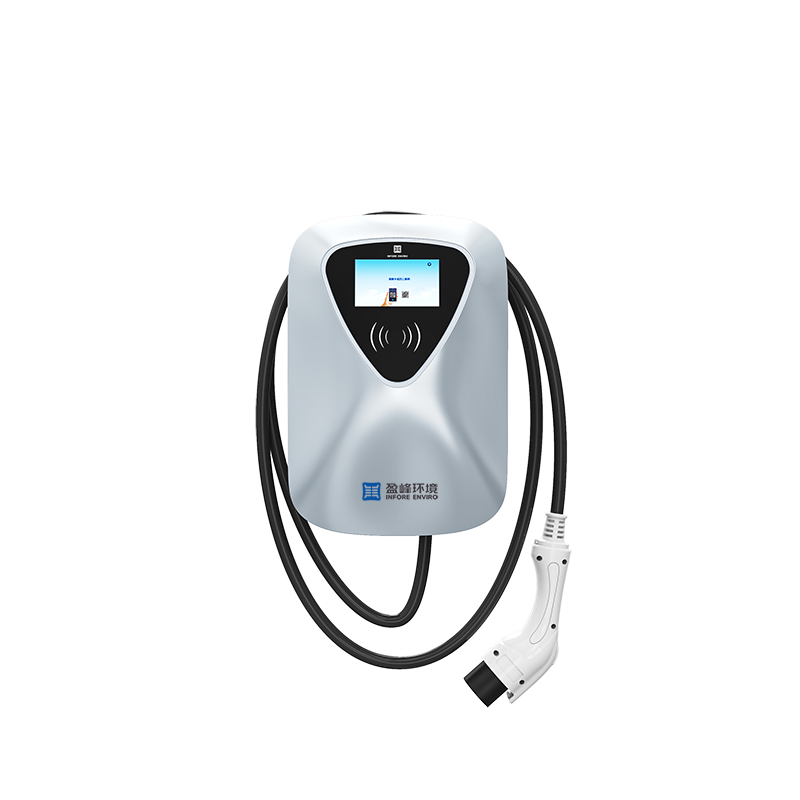

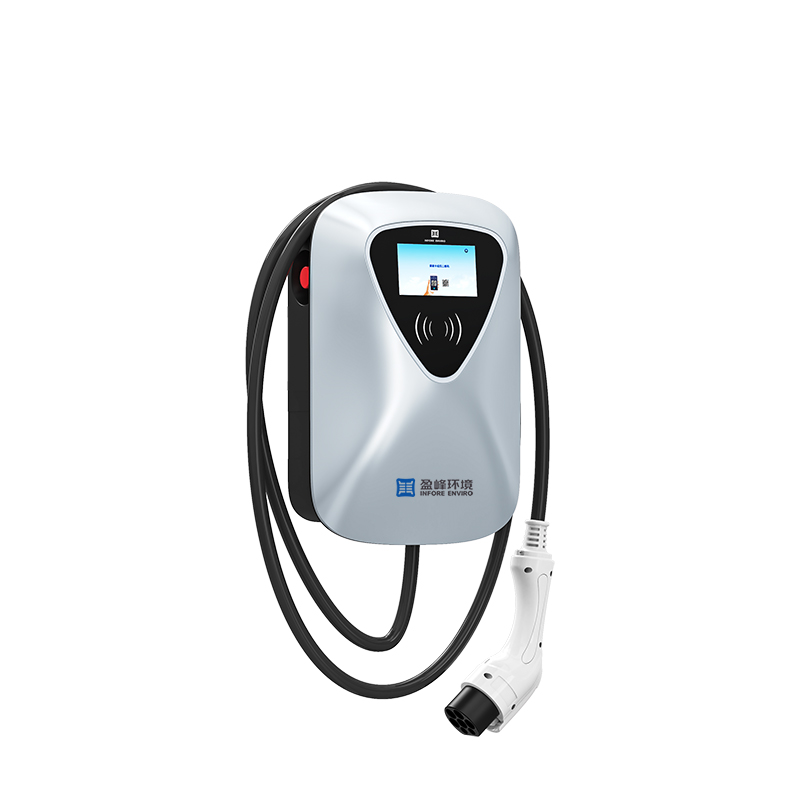

This wall-mounted DC EV charger features IP55-rated waterproof and dustproof protection, making it ideal for both indoor and outdoor use.
Highlights :
- 7kW/11kW/22kW
- Single Charging (CCS1/CCS2/GBT/CHADEMO/NACS)
- Full Protection
- OCPP 1.6
- IP55
Description
| High efficiency, reliable and stable performance | |||||||
| Applicable Scenes | |||||||
| They are suitable for occasions such as private villas, residential areas, commercial office buildings, urban complex parking lots or urban public charging stations that can charge slowly for a long time; or applied for 4S stores of new energy vehicles, workshop debugging areas, road rescue of new energy vehicles and other occasions that require frequent change of charging station sites or temporary power supply. | |||||||
| Features | |||||||
| l Convenient installation: Wall mounted; | |||||||
| l High efficiency, reliable and stable performance; | |||||||
| l Friendly interaction interface, 4.3’’ color screen(Optional); l Support Swipe card/ manual to charge (optional); l Support IEC62196-2 Type-2 connector (optional); l Overload integrated Protection; | |||||||
| l Adopt flame retardant ABS housing. | |||||||
| Technical Data | |||||||
| S. NO. Parameters | Requirements | ||||||
| General Requirements | |||||||
| 1 Charger Capacity | 7kW/11kW/22kW | ||||||
| Input Requirements | |||||||
| 2 AC Supply System | Single-Phase, 3 Wire AC system/Three-Phase, 5 Wire AC system(ENC) | ||||||
| 3 Nominal Input voltage | AC220V±15%(ENC)/AC380V±15% | ||||||
| 4 Input frequency | 50/60±3Hz | ||||||
| Environmental Requirements | |||||||
| 5 Ambient Temperature Range | -25 to 55°C | ||||||
| 6 Ambient Humidity | 5 to 95% | ||||||
| 7 Storage temperature | -40 to 70°C | ||||||
| Mechanical Requirements | |||||||
| 8 IP Ratings | IP 55 | ||||||
| 9 Cooling | Natural Cooling | ||||||
| Output Requirements | |||||||
| 10 Number of outputs | 1 | ||||||
| 11 Type of each output | AC380V±15% | ||||||
| 12 Output Current | Max.32 Amp | ||||||
| 13 Output Connector Compatibility | IEC 62196 2017, IEC 61851 2017,etc. | ||||||
| 14 Connector Mounting | Indoor use | ||||||
| User Interface & Display Requirements | |||||||
| 15 Emergency stop switch | Support | ||||||
| 16 Display | 4.3’’ screen (Optional) | ||||||
| 17 User Authentication | Manual /RFID Card(Optional) | ||||||
| 18 Metering Information | Consumption Units | ||||||
| Communication Requirements | |||||||
| 19 Metering | Grid responsive metering as per units’ consumption of each vehicle | ||||||
| Protection & Safety Requirements | |||||||
| 20 Safety Parameters | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | ||||||
| High efficiency, reliable and stable performance | |||||||
| Applicable Scenes | |||||||
| They are suitable for occasions such as private villas, residential areas, commercial office buildings, urban complex parking lots or urban public charging stations that can charge slowly for a long time; or applied for 4S stores of new energy vehicles, workshop debugging areas, road rescue of new energy vehicles and other occasions that require frequent change of charging station sites or temporary power supply. | |||||||
| Features | |||||||
| l Convenient installation: Wall mounted; | |||||||
| l High efficiency, reliable and stable performance; | |||||||
| l Friendly interaction interface, 4.3’’ color screen(Optional); l Support Swipe card/ manual to charge (optional); l Support IEC62196-2 Type-2 connector (optional); l Overload integrated Protection; | |||||||
| l Adopt flame retardant ABS housing. | |||||||
| Technical Data | |||||||
| S. NO. Parameters | Requirements | ||||||
| General Requirements | |||||||
| 1 Charger Capacity | 7kW/11kW/22kW | ||||||
| Input Requirements | |||||||
| 2 AC Supply System | Single-Phase, 3 Wire AC system/Three-Phase, 5 Wire AC system(ENC) | ||||||
| 3 Nominal Input voltage | AC220V±15%(ENC)/AC380V±15% | ||||||
| 4 Input frequency | 50/60±3Hz | ||||||
| Environmental Requirements | |||||||
| 5 Ambient Temperature Range | -25 to 55°C | ||||||
| 6 Ambient Humidity | 5 to 95% | ||||||
| 7 Storage temperature | -40 to 70°C | ||||||
| Mechanical Requirements | |||||||
| 8 IP Ratings | IP 55 | ||||||
| 9 Cooling | Natural Cooling | ||||||
| Output Requirements | |||||||
| 10 Number of outputs | 1 | ||||||
| 11 Type of each output | AC380V±15% | ||||||
| 12 Output Current | Max.32 Amp | ||||||
| 13 Output Connector Compatibility | IEC 62196 2017, IEC 61851 2017,etc. | ||||||
| 14 Connector Mounting | Indoor use | ||||||
| User Interface & Display Requirements | |||||||
| 15 Emergency stop switch | Support | ||||||
| 16 Display | 4.3’’ screen (Optional) | ||||||
| 17 User Authentication | Manual /RFID Card(Optional) | ||||||
| 18 Metering Information | Consumption Units | ||||||
| Communication Requirements | |||||||
| 19 Metering | Grid responsive metering as per units’ consumption of each vehicle | ||||||
| Protection & Safety Requirements | |||||||
| 20 Safety Parameters | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | ||||||
