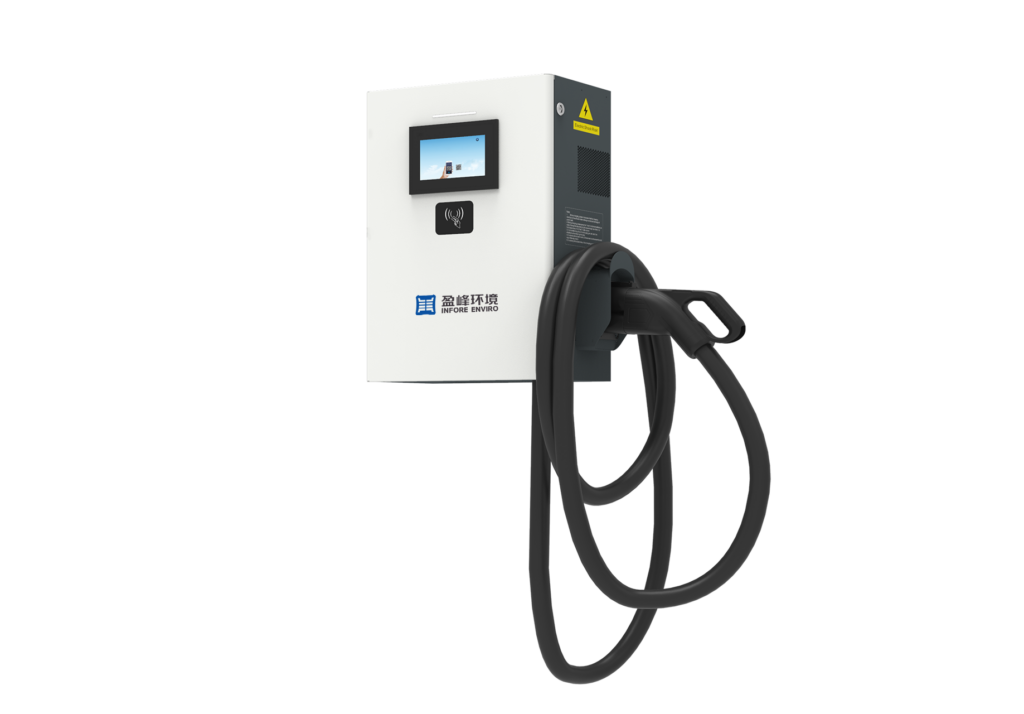

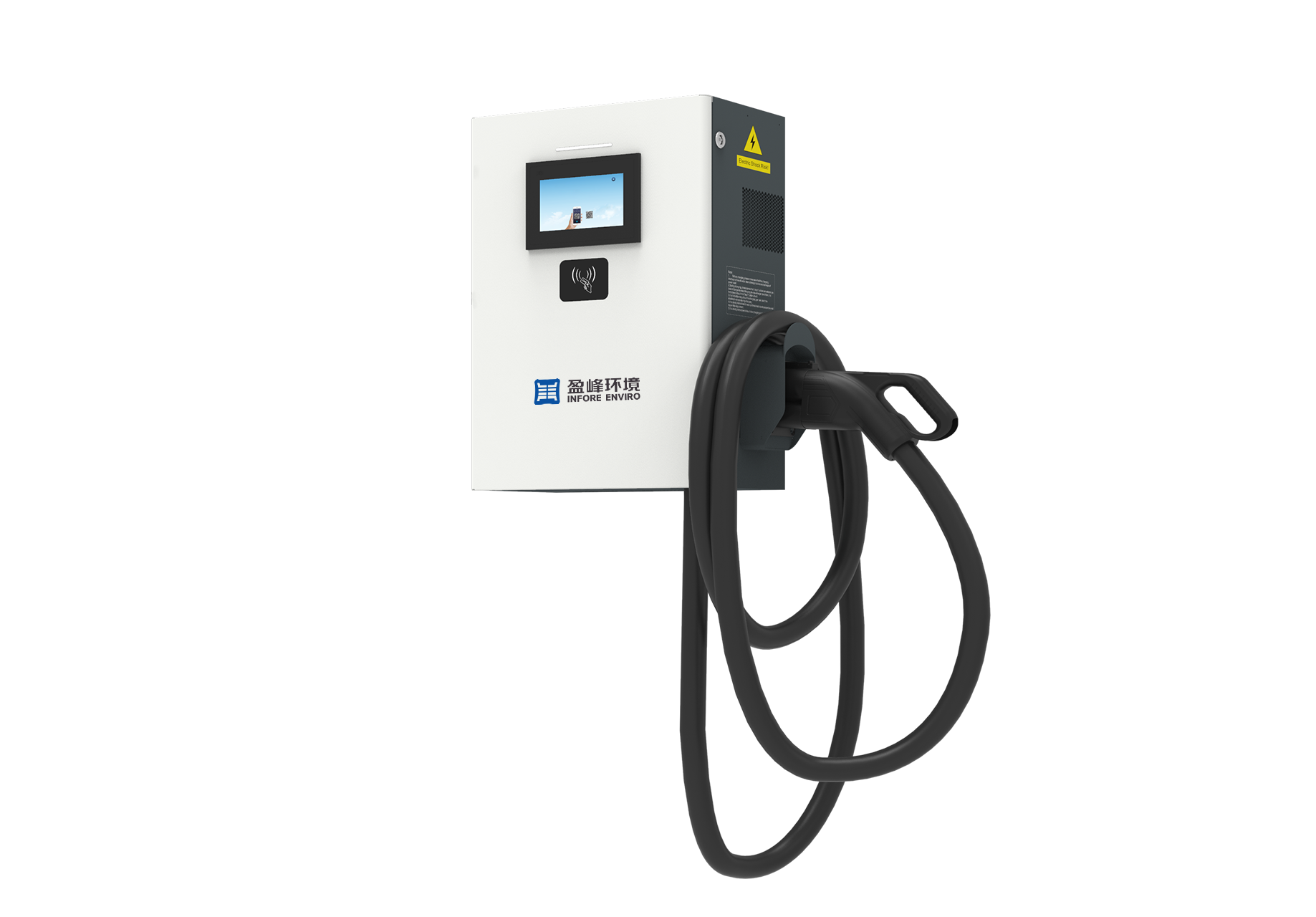

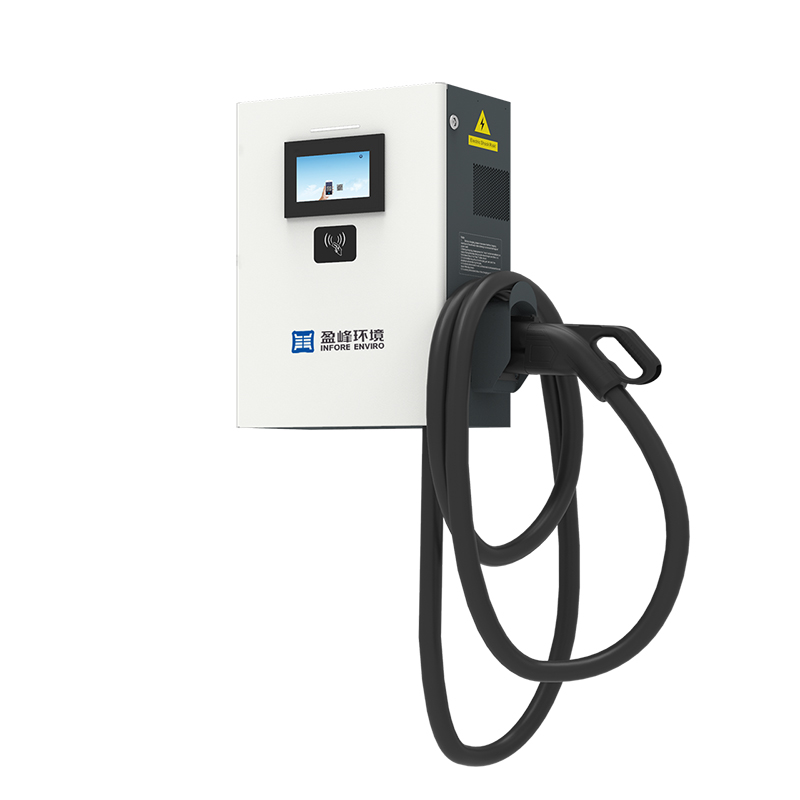

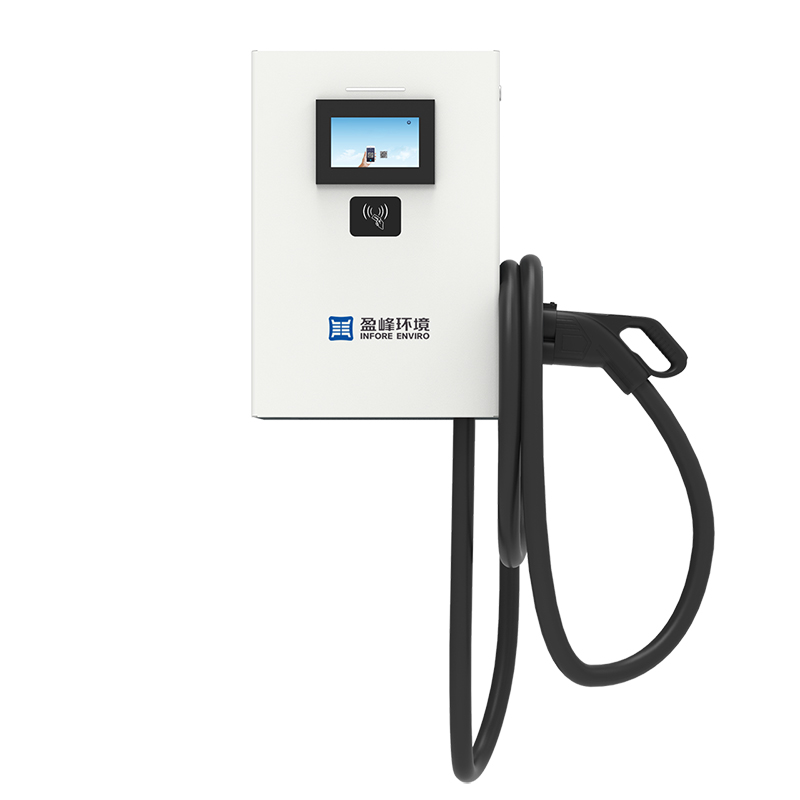

DC EV CHARGING STATION 20kW/40kW CCS2
Dedicated for best quality innovations
DC EV CHARGING STATION 20kW/40kW CCS2
Single Guns 20kW/30kW CCS2 INFORE ENVIRO AC EV Charging Station Fast Charging
Highlights :
- 20kW-30kW
- Single Gun（CCS1/CCS2/GBT/CHADEMO/NACS)
- 7-inch LCD screen
- OCPP 1.6J
- IP54
Description
| High efficiency, reliable and stable performance | |||||||||
| Applicable Scenes | |||||||||
| They are suitable for occasions such as city special charging stations that provide charging for buses, taxis, public service vehicles, sanitation vehicles, logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuters, bus; intercity highway charging stations and other occasions that need special DC fast charging. | |||||||||
| Features | |||||||||
| l Convenient installation: Wall mounted; | |||||||||
| l High efficiency, reliable and stable performance; | |||||||||
| l Friendly interaction interface, 7’’ color touch screen(Optional); | |||||||||
| l Support OCPP1.6J/Ethernet/3G/4G/WIFI telecommunication (optional); l Support Swipe card/ Scan QR code/input password to charge (optional); l Support IEC62196 CCS-2 connector/socket (optional); l Overload integrated Protection; l Support online data upgrade. | |||||||||
| Size & Length | |||||||||
| Cabinet size(L*W*H)(mm) | Cabinet weight(kg) | Wooden box packing size(L*W*H)(mm) | Gross packing weight(kg) | Cable length(m) | |||||
| 440*268*650 | 57 | 680*640*950 | 90 | 5 | |||||
| Technical Data | |||||||||
| S. NO. Parameters | Requirements | ||||||||
| General Requirements | |||||||||
| 1 Charger Capacity | 20kW/30KW | ||||||||
| Input Requirements | |||||||||
| 2 AC Supply System | Three-Phase, 5 Wire AC system(ENC) | ||||||||
| 3 Nominal Input voltage | AC380V±15%(ENC) | ||||||||
| 4 Input frequency | 45-65Hz | ||||||||
| Environmental Requirements | |||||||||
| 5 Ambient Temperature Range | -25 to 55°C | ||||||||
| 6 Ambient Humidity | 5 to 95% | ||||||||
| 7 Storage temperature | -40 to 70°C | ||||||||
| Mechanical Requirements | |||||||||
| 8 IP Ratings | IP 54 | ||||||||
| 9 Cooling | Air-cooled | ||||||||
| Output Requirements | |||||||||
| 10 Number of outputs | 1 | ||||||||
| 11 Type of each output | DC200-1000V | ||||||||
| 12 Output Current | Max. 100 Amp | ||||||||
| 13 Output Connector Compatibility | IEC 62196 2017, IEC 61851 2017, SAE J1772, etc. | ||||||||
| 14 Connector Mounting | Indoor use | ||||||||
| User Interface & Display Requirements | |||||||||
| 15 Emergency stop switch | Support | ||||||||
| 16 Display | 7 Inches Touch Screen with Shell | ||||||||
| 17 User Authentication | RFID Card/ Password(Optional) | ||||||||
| 18 Metering Information | Consumption Units | ||||||||
| Communication Requirements | |||||||||
| 19 Communication between EVSE and Central Server | OCPP 1.6J Protocol (Optional) | ||||||||
| 20 Metering | Grid responsive metering as per units’ consumption of each vehicle | ||||||||
| 21 Interface between charger and CMS | Ethernet/3G/4G/WIFI (Optional) | ||||||||
| Protection & Safety Requirements | |||||||||
| 22 Safety Parameters | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | ||||||||
| High efficiency, reliable and stable performance | |||||||||
| Applicable Scenes | |||||||||
| They are suitable for occasions such as city special charging stations that provide charging for buses, taxis, public service vehicles, sanitation vehicles, logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuters, bus; intercity highway charging stations and other occasions that need special DC fast charging. | |||||||||
| Features | |||||||||
| l Convenient installation: Wall mounted; | |||||||||
| l High efficiency, reliable and stable performance; | |||||||||
| l Friendly interaction interface, 7’’ color touch screen(Optional); | |||||||||
| l Support OCPP1.6J/Ethernet/3G/4G/WIFI telecommunication (optional); l Support Swipe card/ Scan QR code/input password to charge (optional); l Support IEC62196 CCS-2 connector/socket (optional); l Overload integrated Protection; l Support online data upgrade. | |||||||||
| Size & Length | |||||||||
| Cabinet size(L*W*H)(mm) | Cabinet weight(kg) | Wooden box packing size(L*W*H)(mm) | Gross packing weight(kg) | Cable length(m) | |||||
| 440*268*650 | 57 | 680*640*950 | 90 | 5 | |||||
| Technical Data | |||||||||
| S. NO. Parameters | Requirements | ||||||||
| General Requirements | |||||||||
| 1 Charger Capacity | 20kW/30KW | ||||||||
| Input Requirements | |||||||||
| 2 AC Supply System | Three-Phase, 5 Wire AC system(ENC) | ||||||||
| 3 Nominal Input voltage | AC380V±15%(ENC) | ||||||||
| 4 Input frequency | 45-65Hz | ||||||||
| Environmental Requirements | |||||||||
| 5 Ambient Temperature Range | -25 to 55°C | ||||||||
| 6 Ambient Humidity | 5 to 95% | ||||||||
| 7 Storage temperature | -40 to 70°C | ||||||||
| Mechanical Requirements | |||||||||
| 8 IP Ratings | IP 54 | ||||||||
| 9 Cooling | Air-cooled | ||||||||
| Output Requirements | |||||||||
| 10 Number of outputs | 1 | ||||||||
| 11 Type of each output | DC200-1000V | ||||||||
| 12 Output Current | Max. 100 Amp | ||||||||
| 13 Output Connector Compatibility | IEC 62196 2017, IEC 61851 2017, SAE J1772, etc. | ||||||||
| 14 Connector Mounting | Indoor use | ||||||||
| User Interface & Display Requirements | |||||||||
| 15 Emergency stop switch | Support | ||||||||
| 16 Display | 7 Inches Touch Screen with Shell | ||||||||
| 17 User Authentication | RFID Card/ Password(Optional) | ||||||||
| 18 Metering Information | Consumption Units | ||||||||
| Communication Requirements | |||||||||
| 19 Communication between EVSE and Central Server | OCPP 1.6J Protocol (Optional) | ||||||||
| 20 Metering | Grid responsive metering as per units’ consumption of each vehicle | ||||||||
| 21 Interface between charger and CMS | Ethernet/3G/4G/WIFI (Optional) | ||||||||
| Protection & Safety Requirements | |||||||||
| 22 Safety Parameters | Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | ||||||||
